Pipe Fittings
Tee

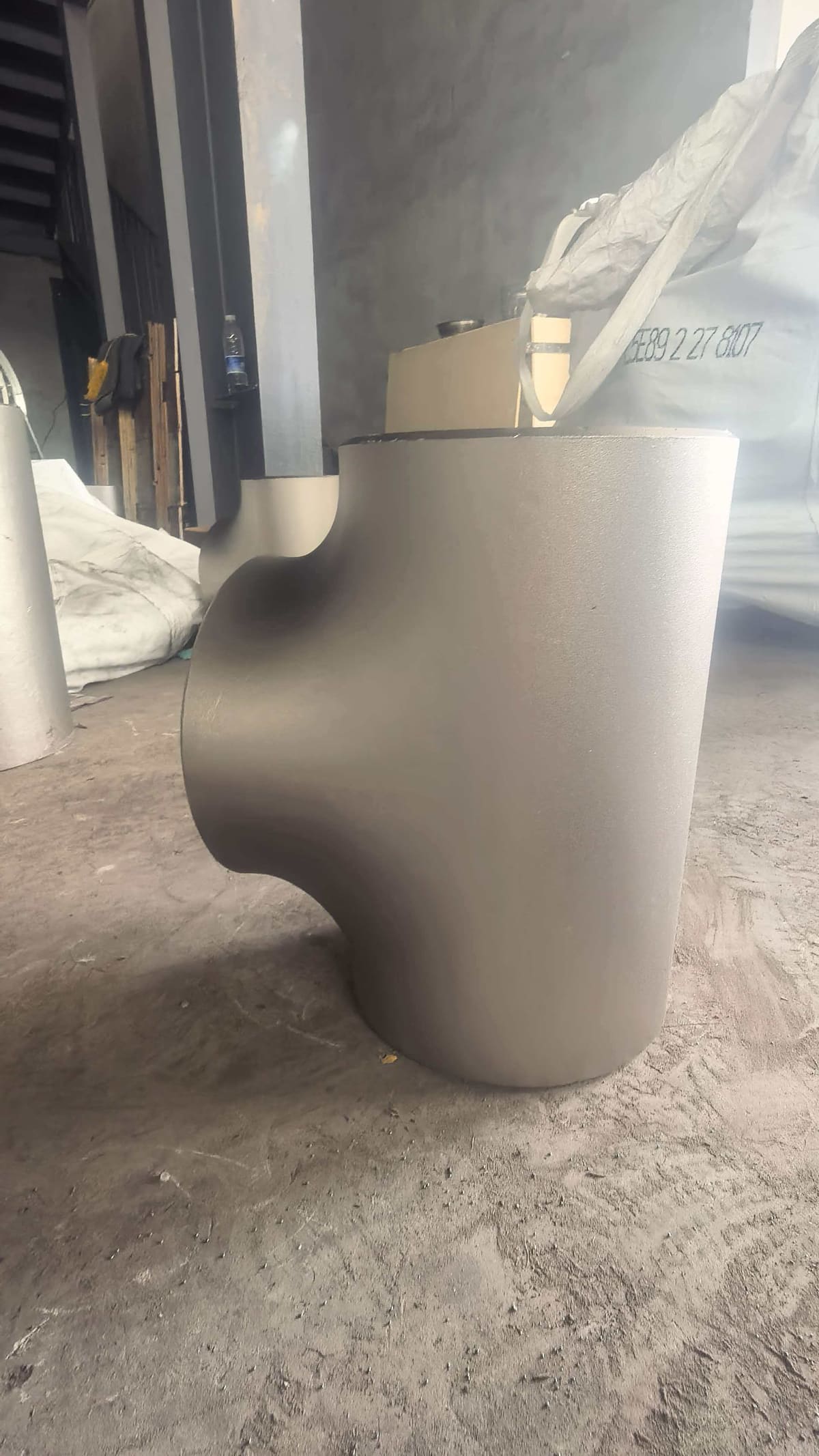

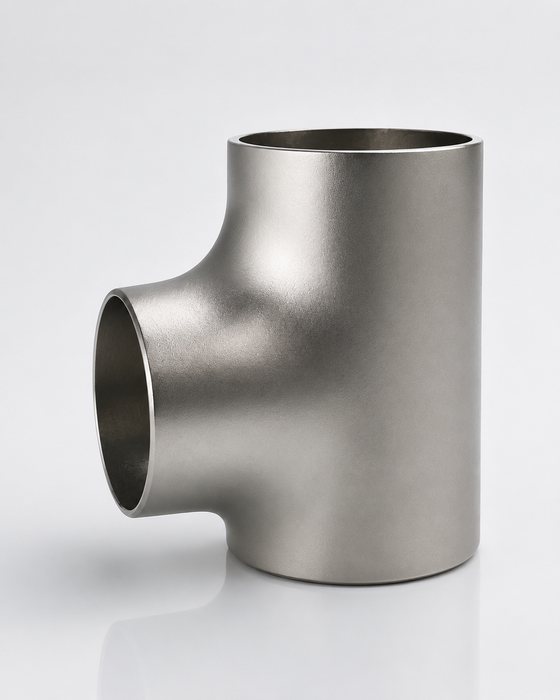

Tees for branch connections between main and branch pipelines, currently available in 304, 316 and 316L stainless steel.
Materials
Reference Standards
Industries
Applications
Installation position: At branch take-offs from a main pipeline and where trunk networks connect to districts, buildings, stormwater lines or wastewater branches.
Purpose: Divides one main line into multiple branch pipelines.
Problem solved: Distributes or collects flow between the trunk network, service areas and end users to form a practical branch network.
Selection and procurement checks
State whether a tee is equal or reducing and specify all three openings. Branch direction, main and branch wall thicknesses, and end forms should match the network drawing. Check interfaces to valve or equipment branches separately.
Information required for quotation
- Equal or reducing form and dimensions of all three openings
- Main and branch wall thickness, branch direction and centre dimensions
- Material grade, end forms and drawing requirements
The materials and standards listed on this page identify reference procurement options. They do not imply that different grades, standards or product forms are interchangeable. Specify the governing standard, material grade, dimensions and inspection requirements in your purchase list; the agreed technical documents define the supply scope.
Include the quantity for each size, delivery destination, required arrival date, and any packaging, marking or documentation requirements so that the supply scope and delivery arrangements can be checked item by item.
Quality and inspection documents
Please state whether the order requires a Mill Test Certificate (MTC/MTR), an EN 10204 type 3.1 inspection certificate, heat or batch traceability, or other inspection records. The document type, applicable material and availability must be confirmed for the specific order. EN 10204 type 3.2 involves additional independent inspection requirements and must be agreed separately before supply.
